Discovery 2 LS Swap Rover AC and GM Powersteering Mount

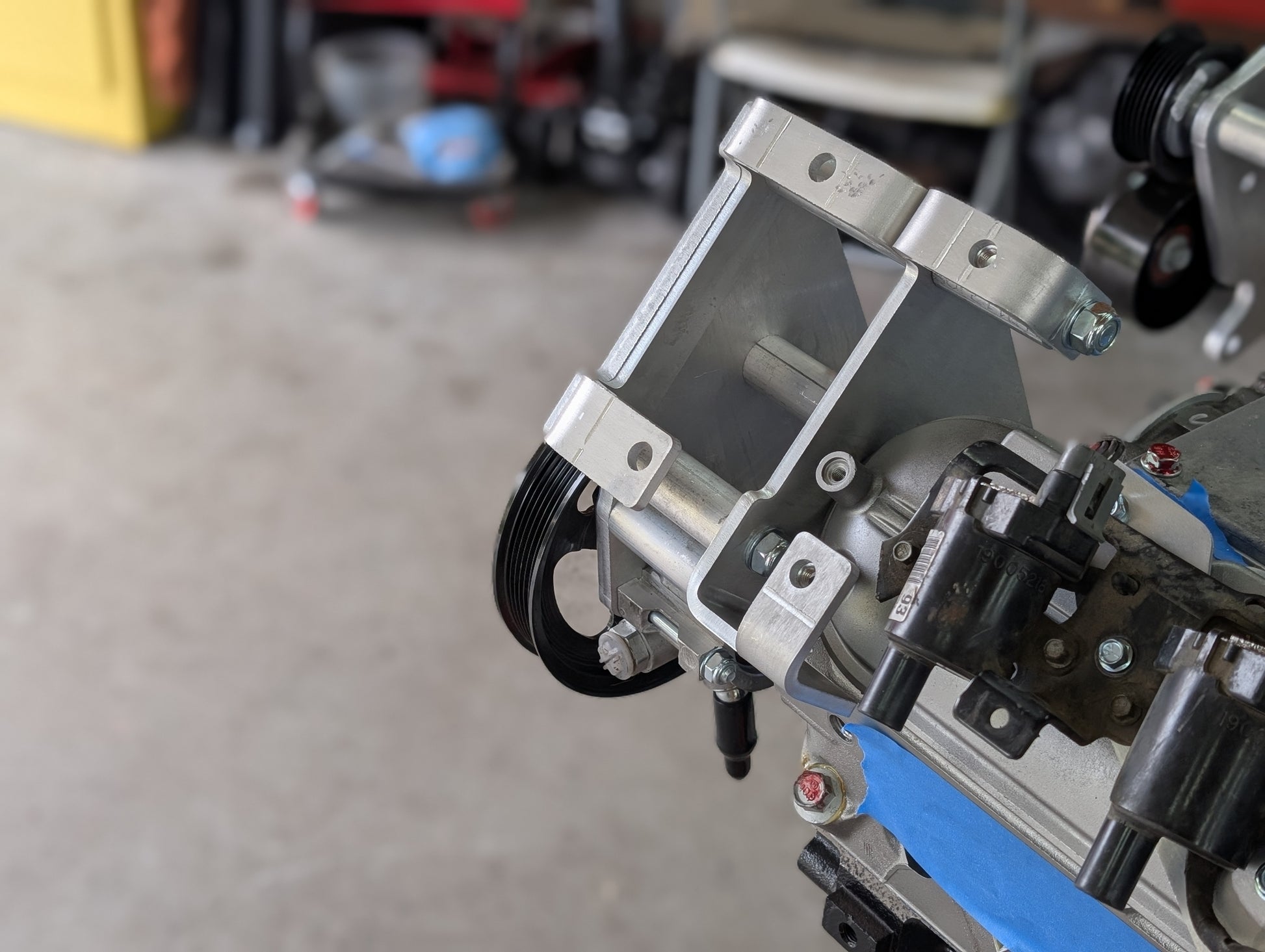

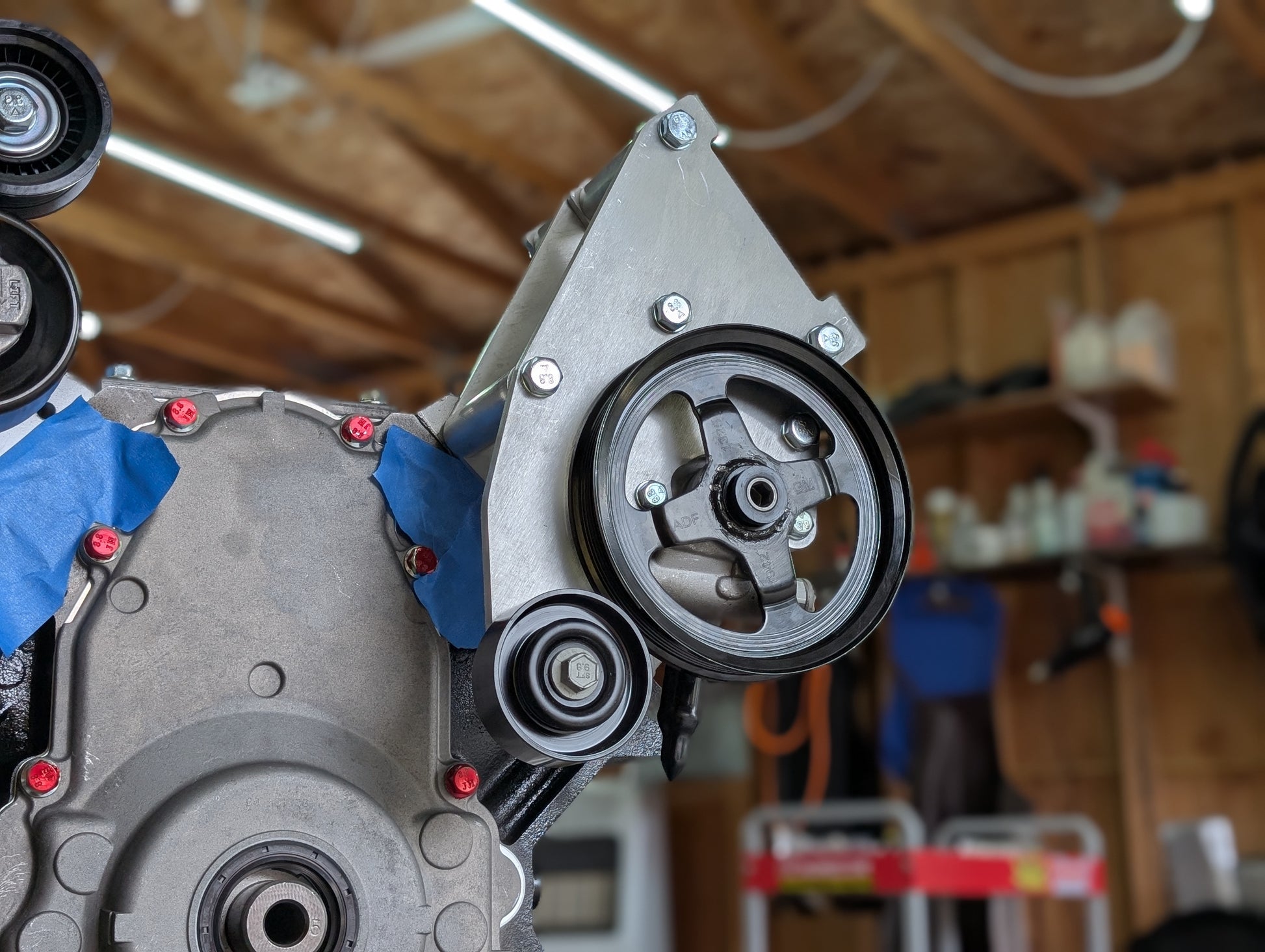

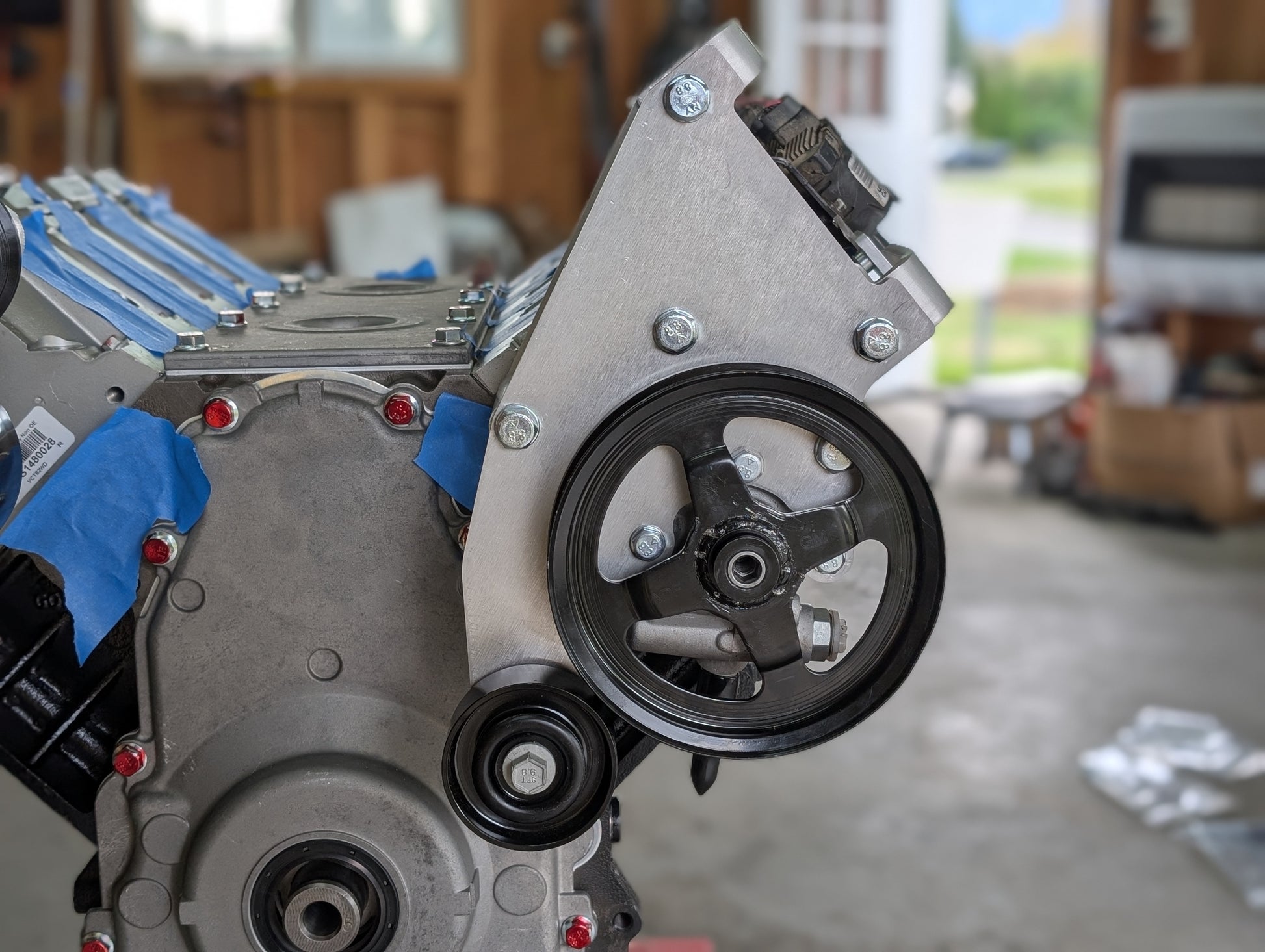

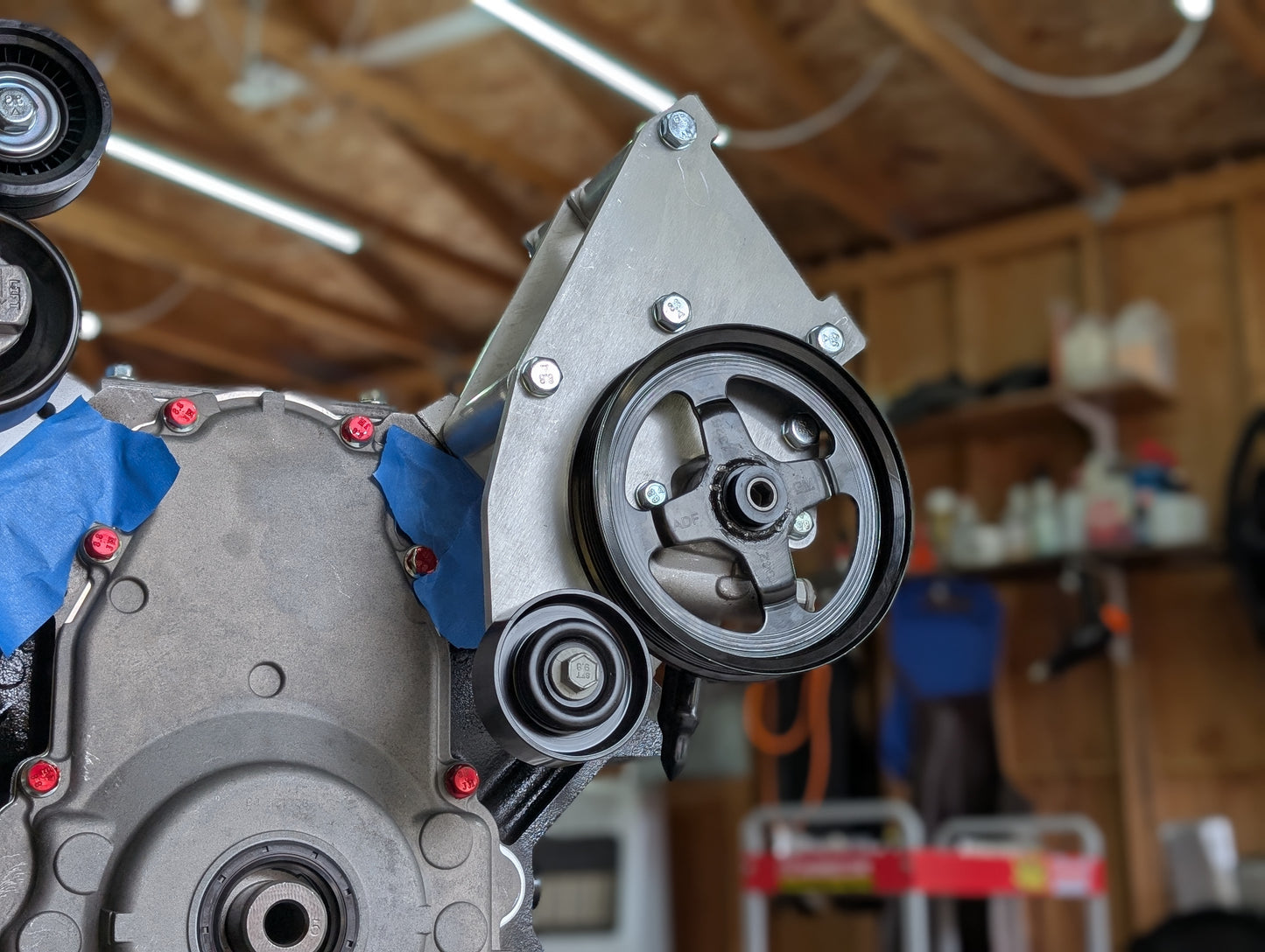

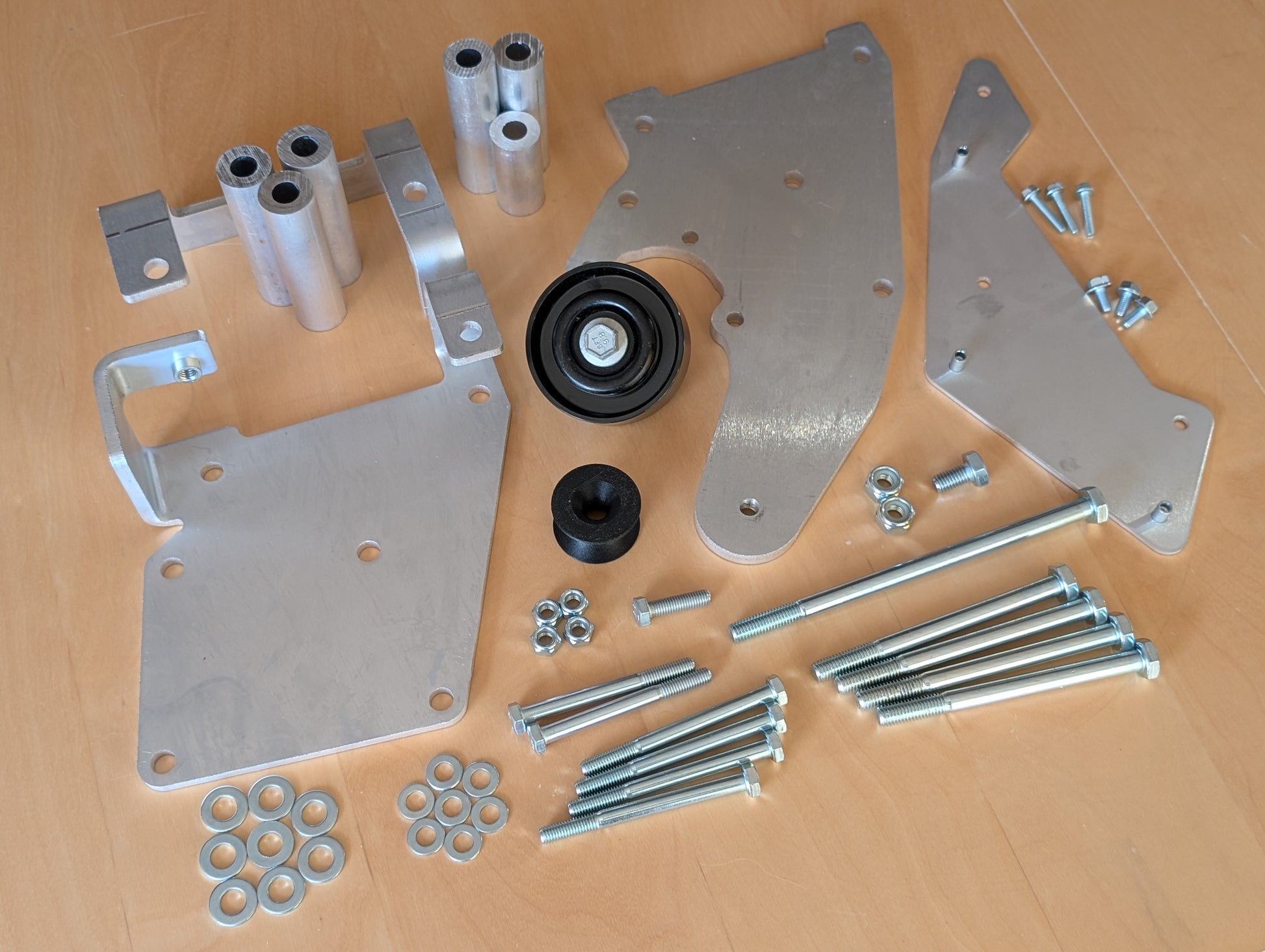

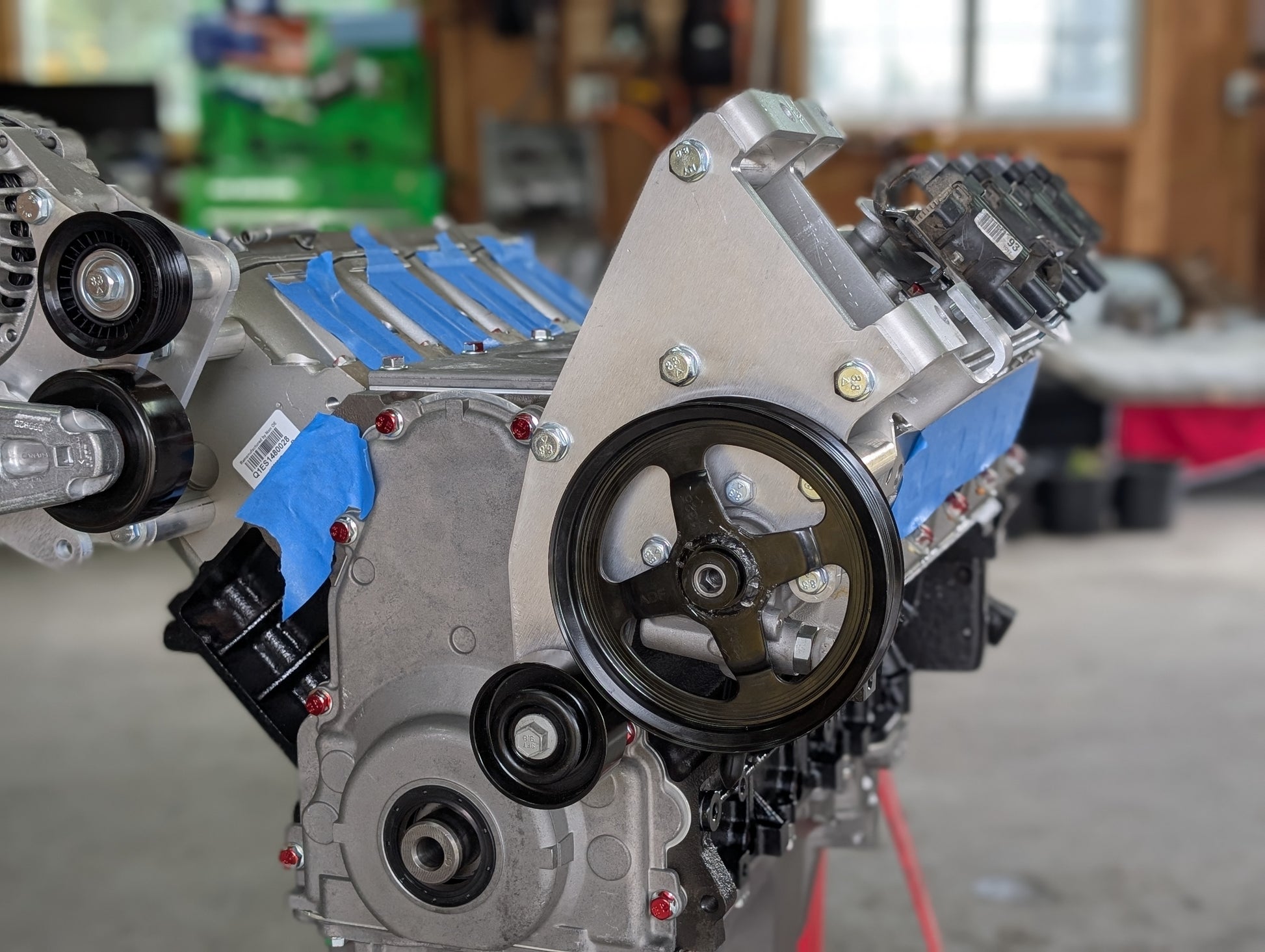

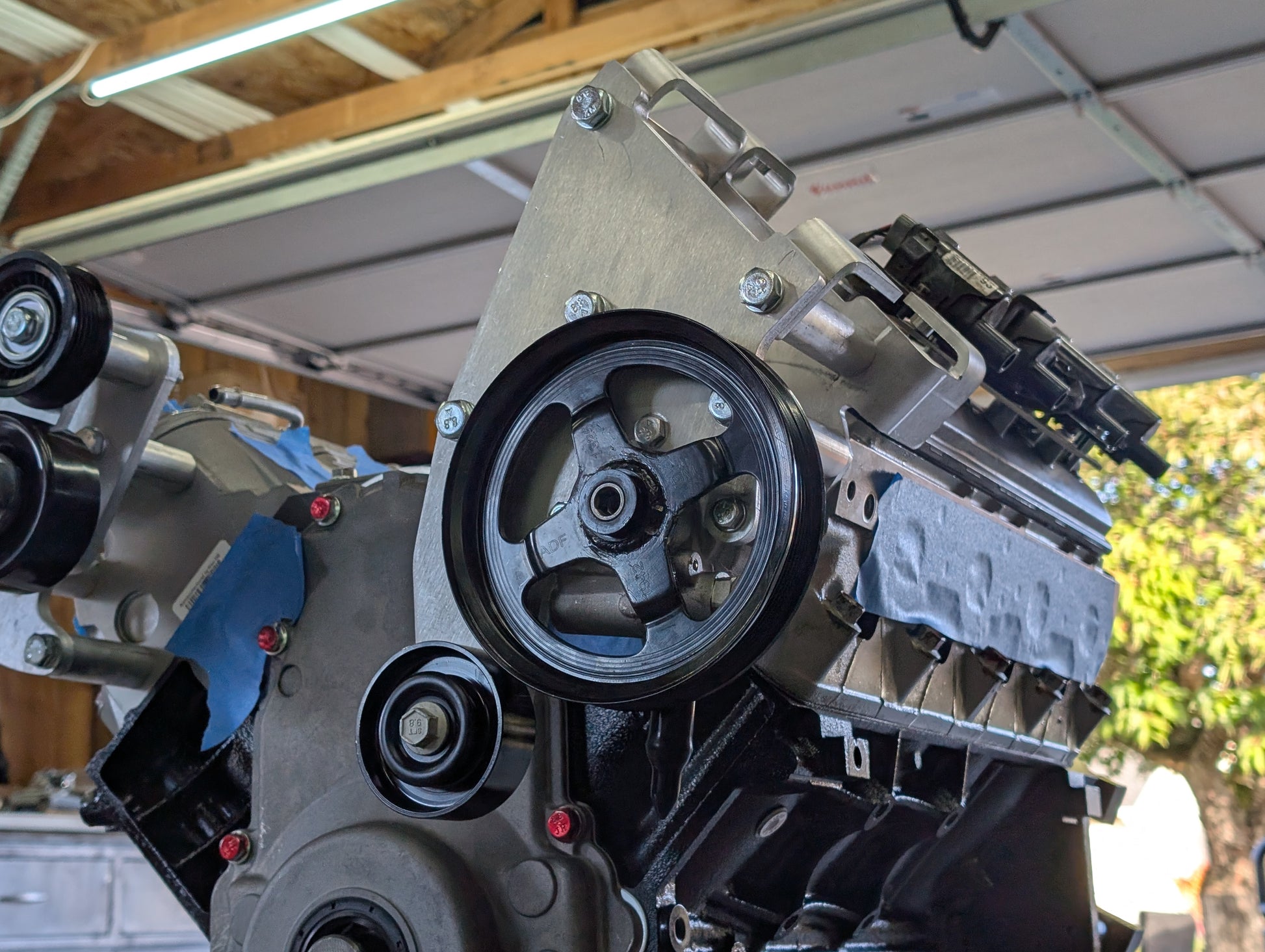

This bracket allows you to mount a GM Type II power steering pump and keep your Discovery 2 AC compressor in an LS-swapped Land Rover. New idler pulley included. Power steering pump and AC compressor not included.

This bracket does not have a tensioner. A tensioner is required on the alternator side. (Like our alternator bracket, for example)

Which engines?

Compatible with Gen 3 truck LS engines (-3 pulley offset) such as the 4.8L, 5.3L and 6.0L engines.

Which Land Rovers?

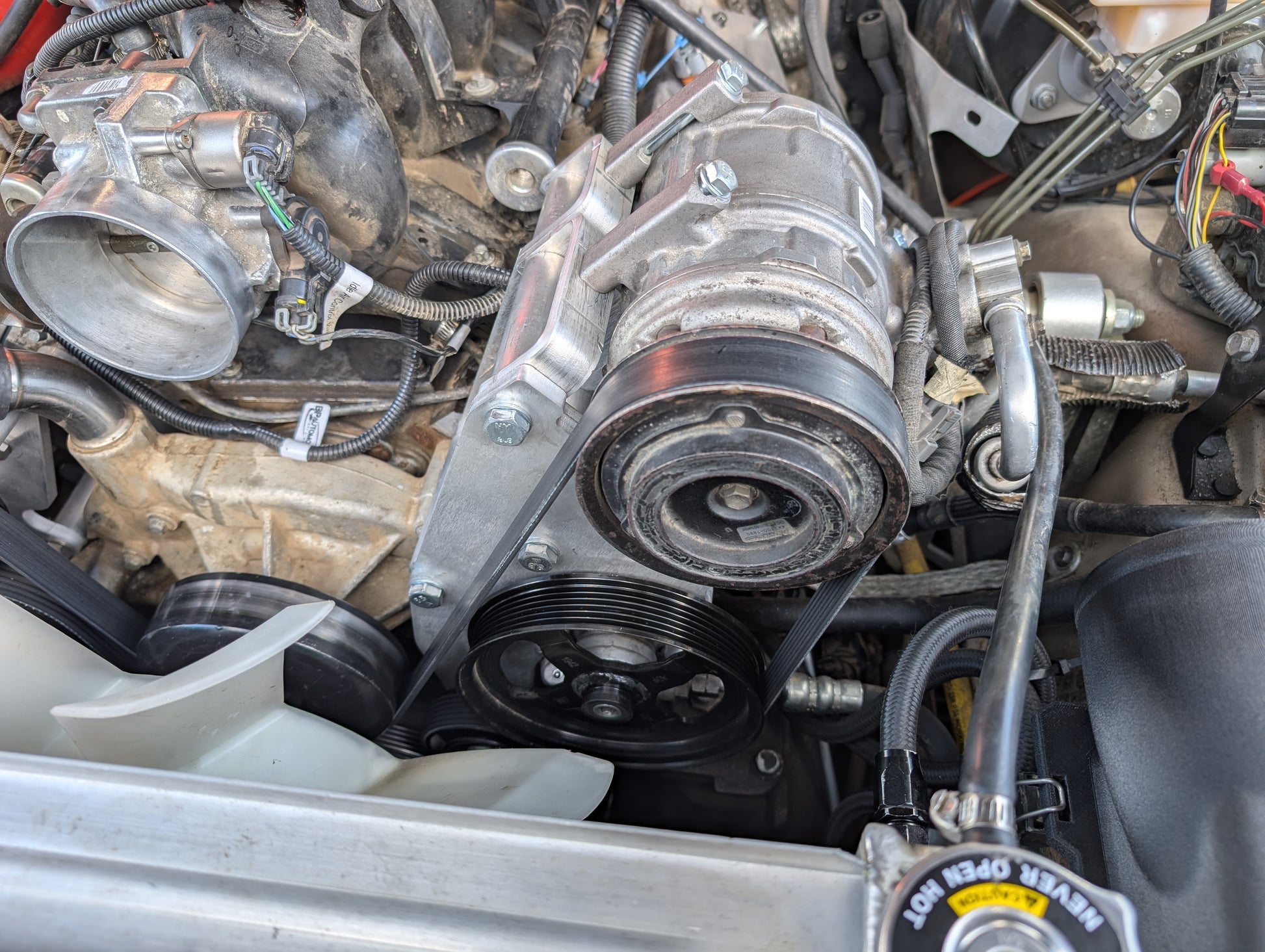

Tested with LS Swapped Discovery II. Should also fit the P38 Range Rover, and possibly the Discovery 1 and Range Rover Classic. The D1 and RRC have slightly different AC compressors, but the mounting pattern looks visually the same.

Which power steering pump?

Use a standard GM Type II power steering pump, such as one from an early 2000s Corvette. Do not get a special one with AN fittings on. This bracket places the pump in such a way that you can attach both Land Rover power steering hoses directly. No adapters needed!

For example, this new Lares pump will fit. You will also need a power steering pulley and an installation tool (or get a loaner from the auto parts store).

Need a power steering/AC mount? Check out the full accessory drive kit.
