Discovery 2 LS Swap Full Accessory Drive Bundle - Belt Included

This is a bundle containing our alternator mount, power steering and AC mount + a belt that fits!

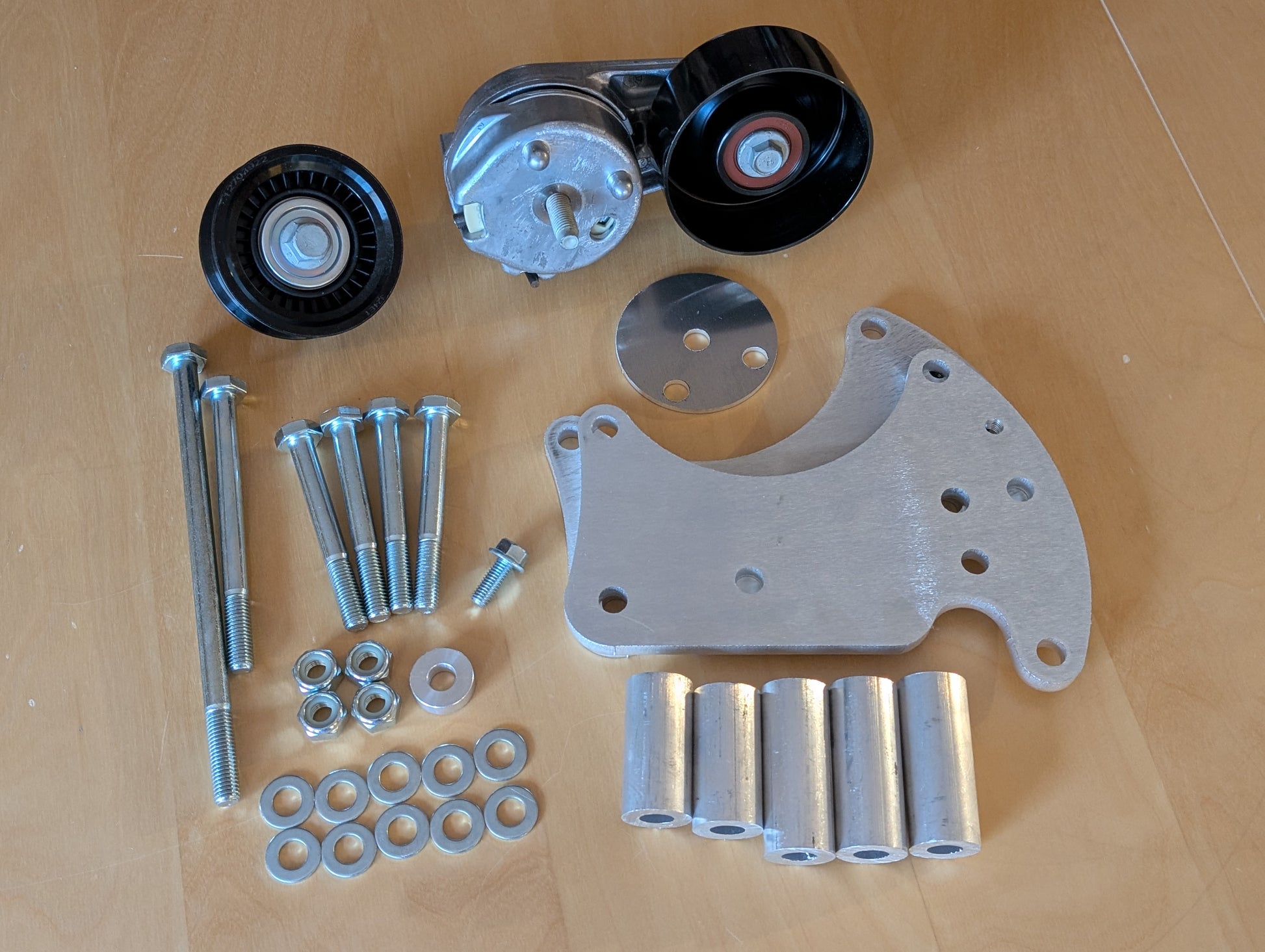

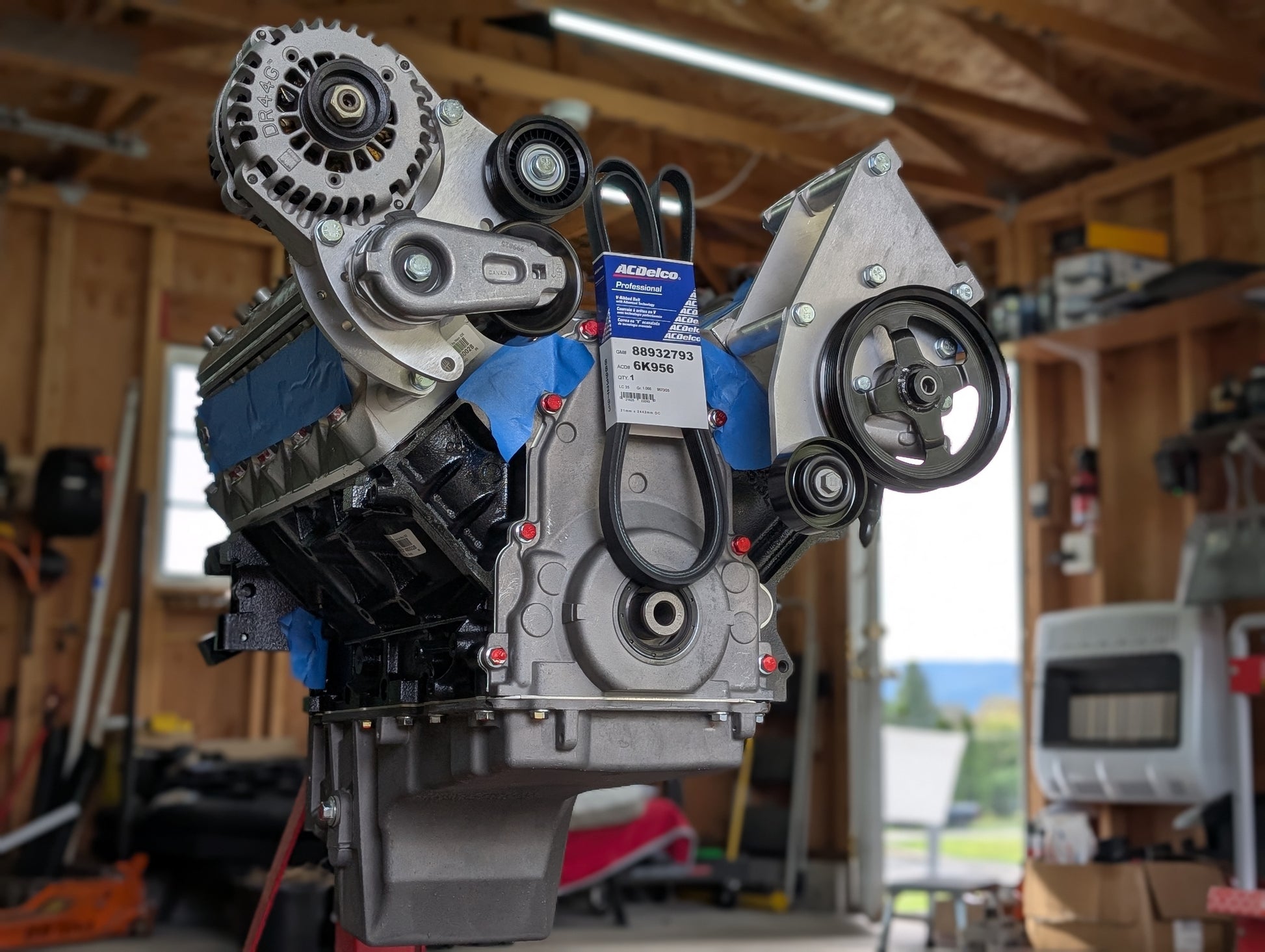

These brackets allow you to mount a GM LS-style alternator, GM Type II power steering pump, and keep you Land Rover AC. Designed for LS swapped Discovery 2 (possibly P38, Discovery 1 and RRC). Comes with the right size belt, new pulleys and tensioner. Alternator, PS pump, and AC compressor not included.

Which engines?

Compatible with Gen 3 truck LS engines (-3 pulley offset) such as the 4.8L, 5.3L and 6.0L engines.

Which Land Rovers?

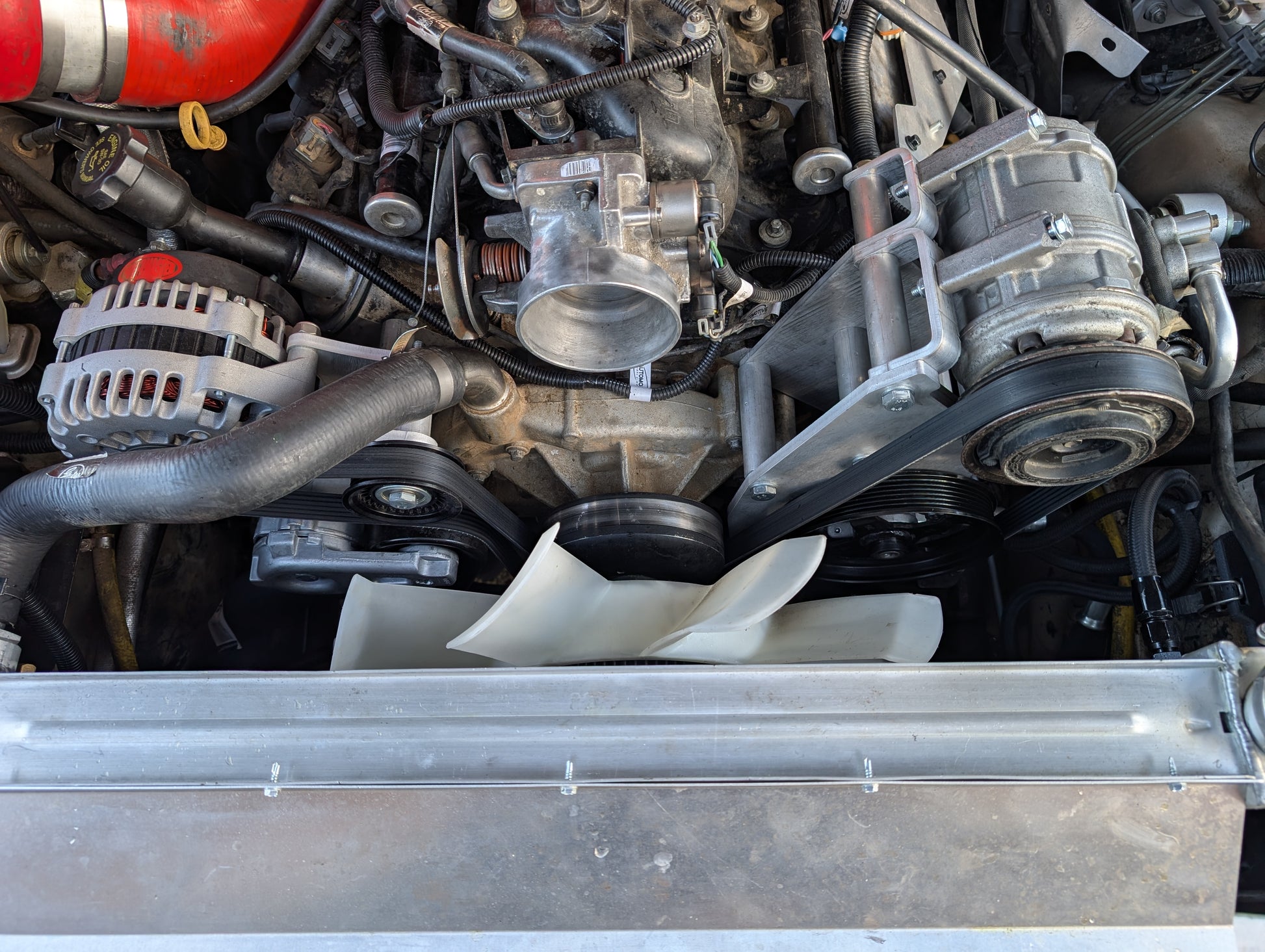

Tested with LS Swapped Discovery II. Should also fit the P38 Range Rover, and possibly the Discovery 1 and Range Rover Classic. The D1 and RRC have slightly different AC compressors, but the mounting pattern looks visually the same.

Which power steering pump?

Use a standard GM Type II power steering pump, such as one from an early 2000s Corvette. Do not get a special one with AN fittings on. This bracket places the pump in such a way that you can attach both Land Rover power steering hoses directly. No adapters needed!

For example, this new Lares pump will fit. You will also need a power steering pulley and an installation tool (you could get a loaner from the auto parts store).

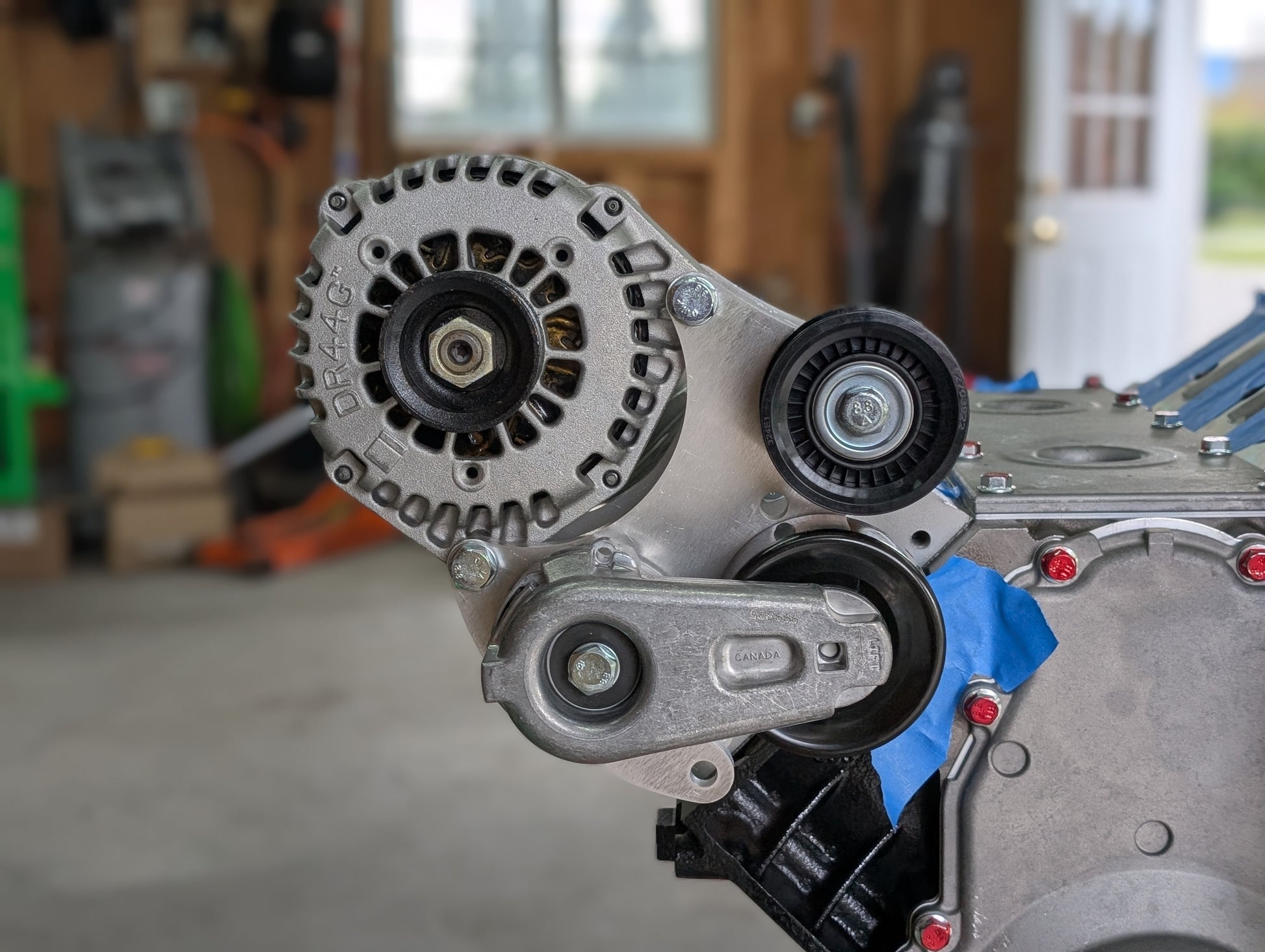

Which Alternator?

Any GM alternator that normally fits a 5.3L should work. They have a 5.46" bolt spacing. Examples:

• Economical 130A
• ACDelco 145A
• Powermaster 165A Upgrade
• Powermaster 220A Upgrade

⚠️ If you are upgrading to anything higher than 150A, make sure to also upgrade the 150A alternator fuse in the fuse box. Also make sure all the wires between the alternator and the battery are thick enough gauge to handle the extra amps.
