Discovery 2 LS Swap Golden Path Bundle

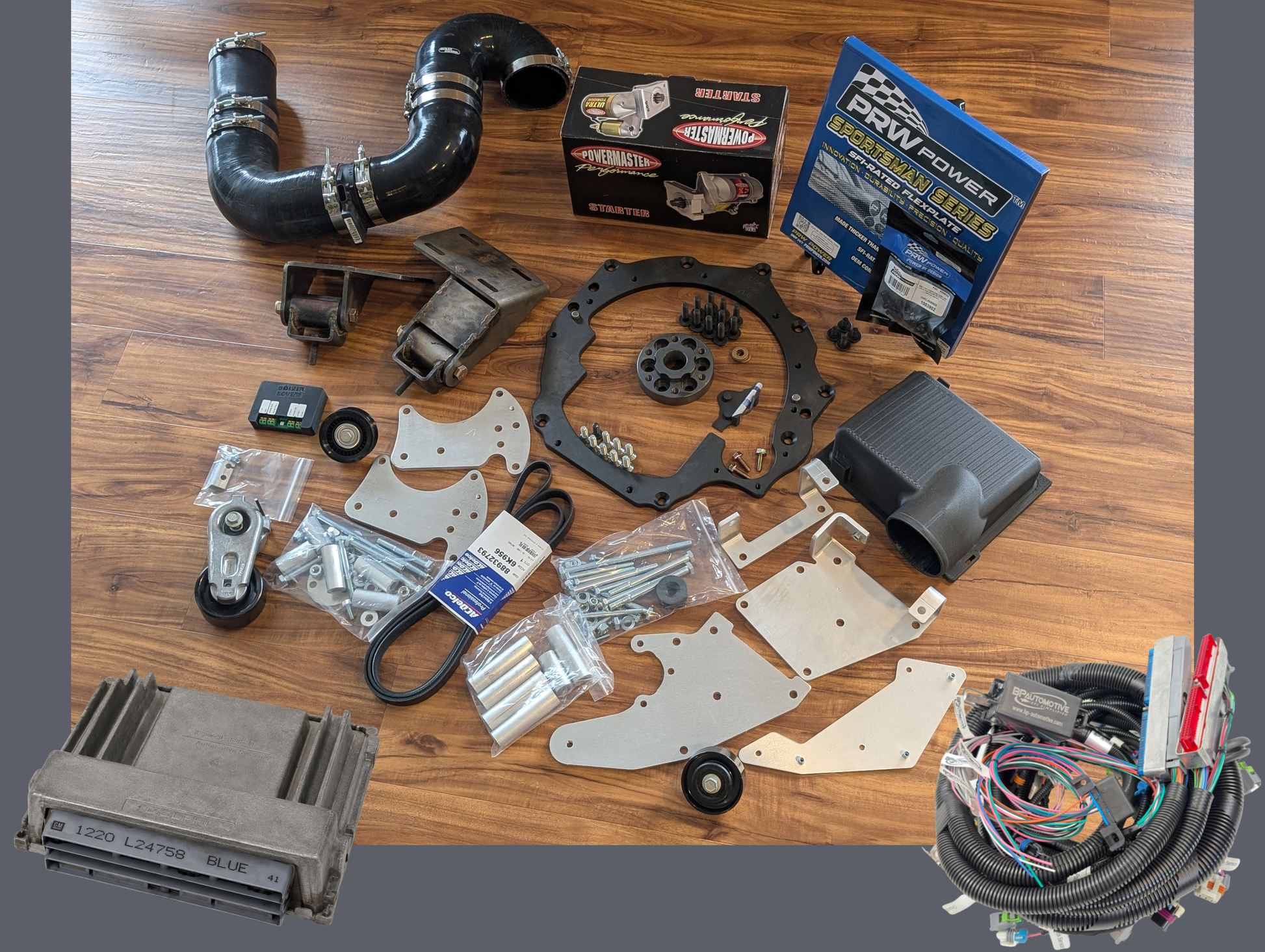

This is our recommended kit for LS swapping your Discovery 2. This kit allows you to put a Gen 3 truck LS in front of a Land Rover 4HP22 or 4HP24 transmission. It includes nearly every custom part you need to get the swap done, plus wiring harness and PCM. Just bring your own engine and engine parts. Included:

LS to 4HP Adapter:

• Precision machined bell housing adapter
• Precision machined crankshaft adapter
• Brand new PowerMaster starter
• PRW SFI extra thick flex plate
• PRW Flexplate bolts
• Class 10.9 Bellhousing bolts
• Class 10.9 Countersunk Adapter bolts
• Class 10.9 Torque converter bolts
• Class 10.9 Crank adapter bolts
• Starter bolts
• Bellhousing cutting guide
• Blue thread lock

LS to Discovery 2 Engine mounts:

• Left and right brackets
• Two U brackets with welded bolt
• Two M12 Nuts
• Two 9/16 Bolts and nuts
• 4 bushings
• 2 Bushing inner sleeves

LS to Discovery 2 Intake:

• Modified 180 degree 4" Elbow
• 90 degree 4" Elbow
• 90 Degree $" to 3.5" Elbow
• 6" long straight 4" Tubing
• Two Aluminum Joiners
• 8 T-bolt Clamps (one of them smaller than the rest)
• Custom air box lid

LS Accessory mounts:

• Serpentine belt
• 2 identical Alternator brackets
• Alternator hardware pack
• Heavy duty tensioner
• Grooved idler pulley + spacer
• PS/AC brackets (front, rear, and top)
• Coil relocation bracket
• Tube pack
• PS/AC Hardware pack
• Smooth idler pulley
• Plastic 3d-printed donut (helps AC hose routing)

Electronics:

• Gen III LS Red/Blue DBC Standalone Harness, Non-Emissions, T56/Non-Electric Trans
• Gen III LS Red/Blue PCM - Programmed to your specs
• 58x Signal conversion board

Other:

• Discovery 2 Throttle pedal adapter
• Upper Shroud Relocation Brackets
• Throttle Cable Bracket
