Discovery 2 LS Swap Conversion Board - Gen 3 Engines and 4HP Transmission

Discovery 2 LS Swap Conversion Board - Gen 3 Engines and 4HP Transmission

$150.00 USD
$150.00 USD
Sale Sold out
Shipping calculated at checkout.
×
Discovery 2 LS Swap Conversion Board - Gen 3 Engines and 4HP Transmission

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.

Discovery 2 LS Swap Conversion Board - Gen 3 Engines and 4HP Transmission

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓Valid
Only plain are not allowed in the message Message length must be 250 characters allowed
Country is required

If WhatsApp can't deliver your alert, we may send it to the same number by SMS instead.

Your notification has been registered. Close

We respect your privacy and don't share your email with anybody.

×

Backordered, but there's more on the way. Expected in 15 days

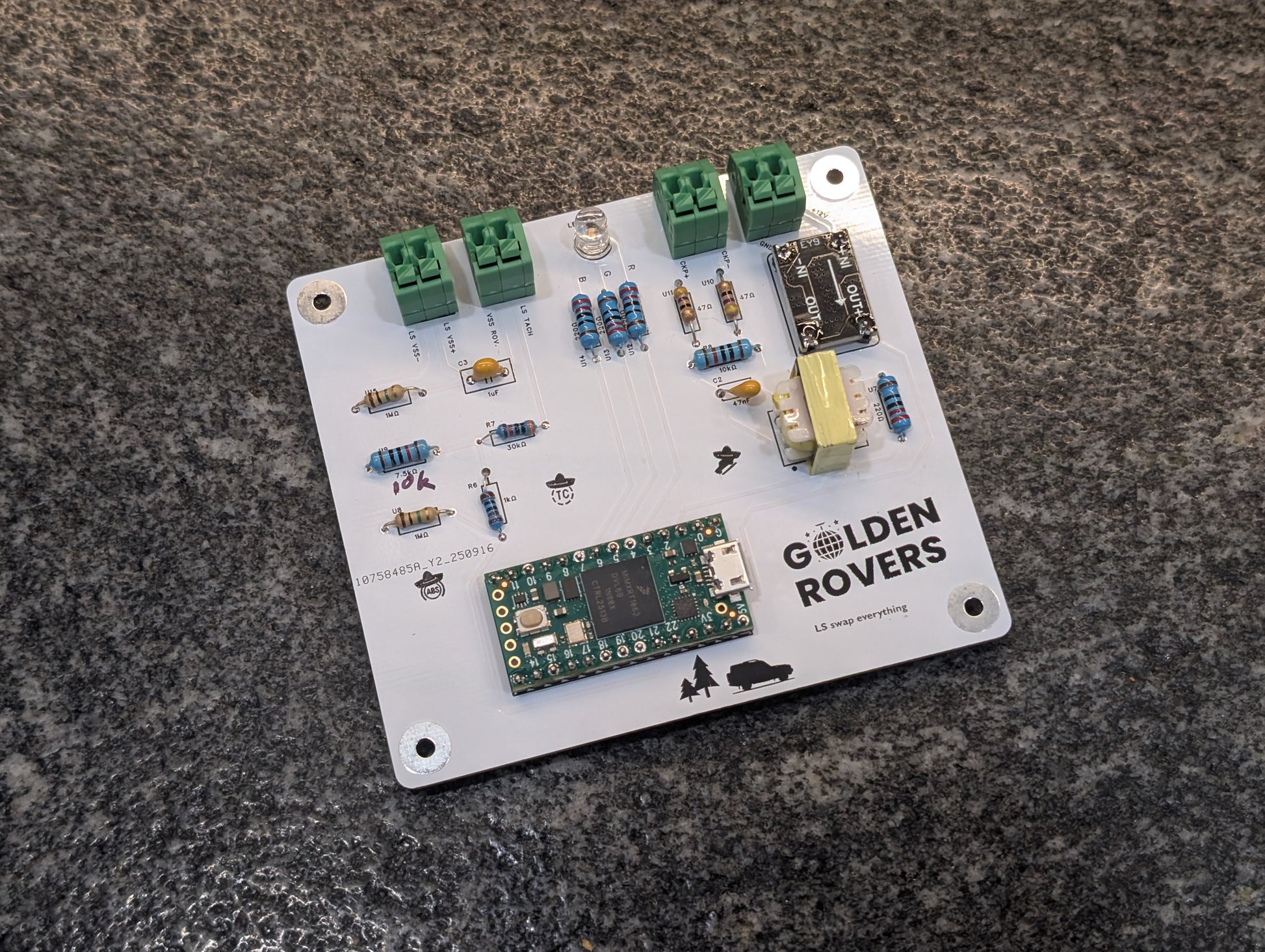

This board has been tested with LS swapped Discovery 2 vehicles using a Gen 3 LS (e.g. LM7, LM4, L33...) and retaining the stock 4-speed ZF transmission. NOT for Gen 4 and 6L80 transmissions.

It takes the tachometer signal from the GM computer as input, and outputs a Rover 58x CKP signal.

For vehicles swapped using the ACE kit, this board replaces the flaky rover crankshaft position sensor and reluctor wheel located behind the harmonic balancer. This board also converts the Rover VSS signal to the GM VSS signal, fully replacing the ACE kit's black box.

Vehicle Fit

Tested with LS Swapped 1999-2004 Discovery 2 running a GM Gen 3 LS.

Might also work with Discovery 1, Range Rover Classic, and P38 Range Rover.

Might also work with Gen 4 LS.

Install Instructions

Conversion Board Install Instructions

Materials

California prop 65 warning View full details
  • 5 stars: 3 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
l
ledd lemmenes
Great Kit!

Great Kit! Got rid of my janky ACE rover Crankshaft Position Sensor. Also had unrelated issues that Daniel helped me figure out that I thought this box would fix Much appreciated!

R
Robert Sutherland
Great Product

Great product with even better support thank you for helping me troubleshoot your support is top notch! Will be my go to for D2 related LS gear thank you!

M
MC
Excellent!

I used this in my non-LS manual transmission swap running the Holley Sniper 2 and used the tach output from that to drive the board with 4 pulses per revolution. Running the board allows the BCU to know the engine is running and allows the defrost and other features to be used. ( only downside is the check engine light will be on for the Holley EFI, as the factory computer doesn’t see any other inputs but the CKP signal. ) Will wire in the TPS and hopefully will be able to use things like HDC,etc will be available too.
